San Bernardino City Unified School District Nutrition Center Steam Boilers Replacement Project
San Bernardino, 2006-2011, JN06011 Project description: The replacement of equipment in a high pressure steam system serving the production kitchen in the District Nutrition Center.
Equipment replaced included:
Three 48 HP steam boilers
Three boiler flue stacks with barometric dampers
Boiler feedwater system
Boiler blow off system
Condensate return pump
Steam trap and PRV assemblies
Services performed: Mechanical, plumbing, and electrical engineering
and drawings for public works competitive bidding. Owner: San Bernardino City Unified School District General and Mechanical Contractor: Martin Mechanical
Click on any image below for a larger view.

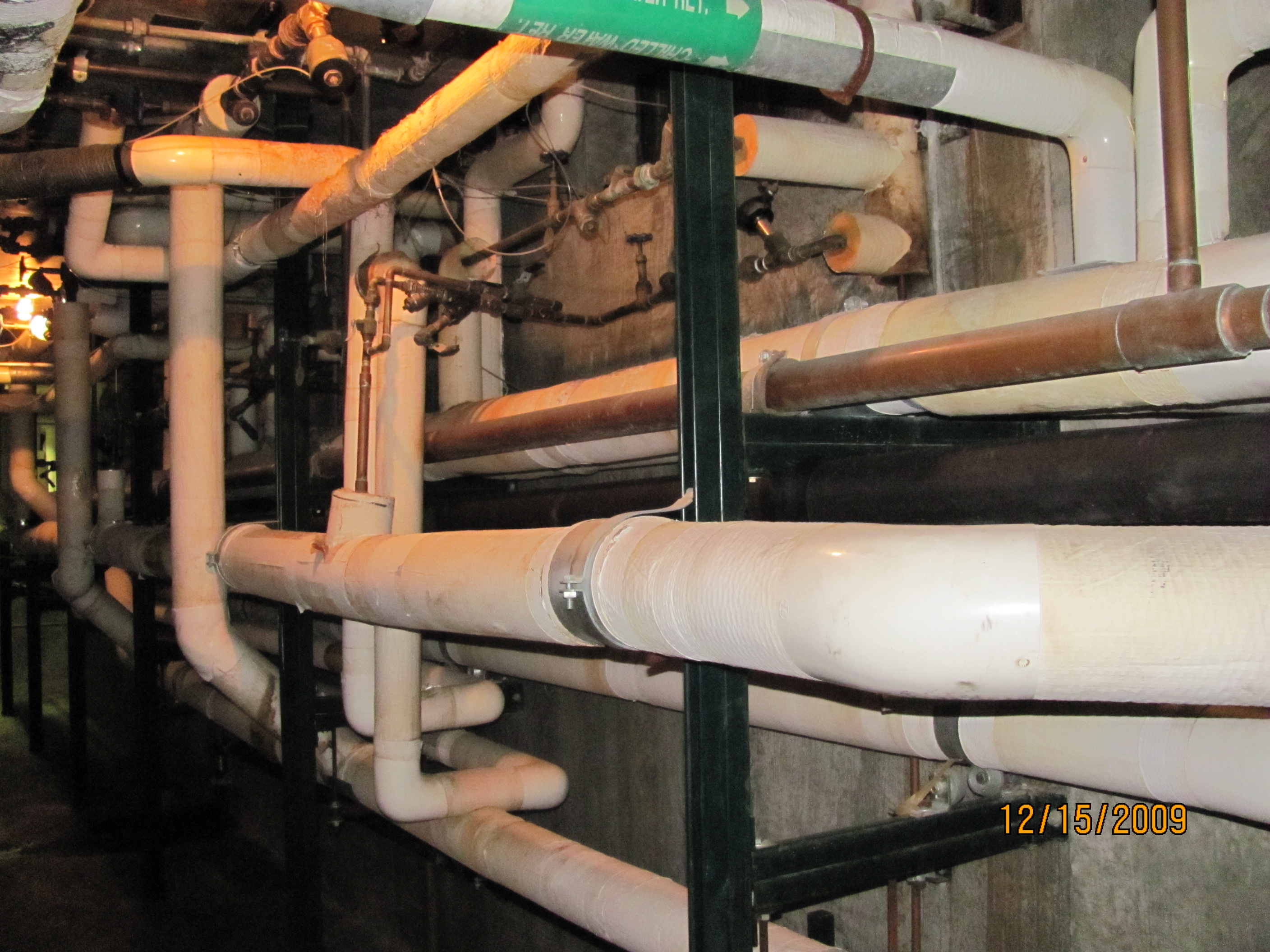

Existing steam and condensate piping in tunnel

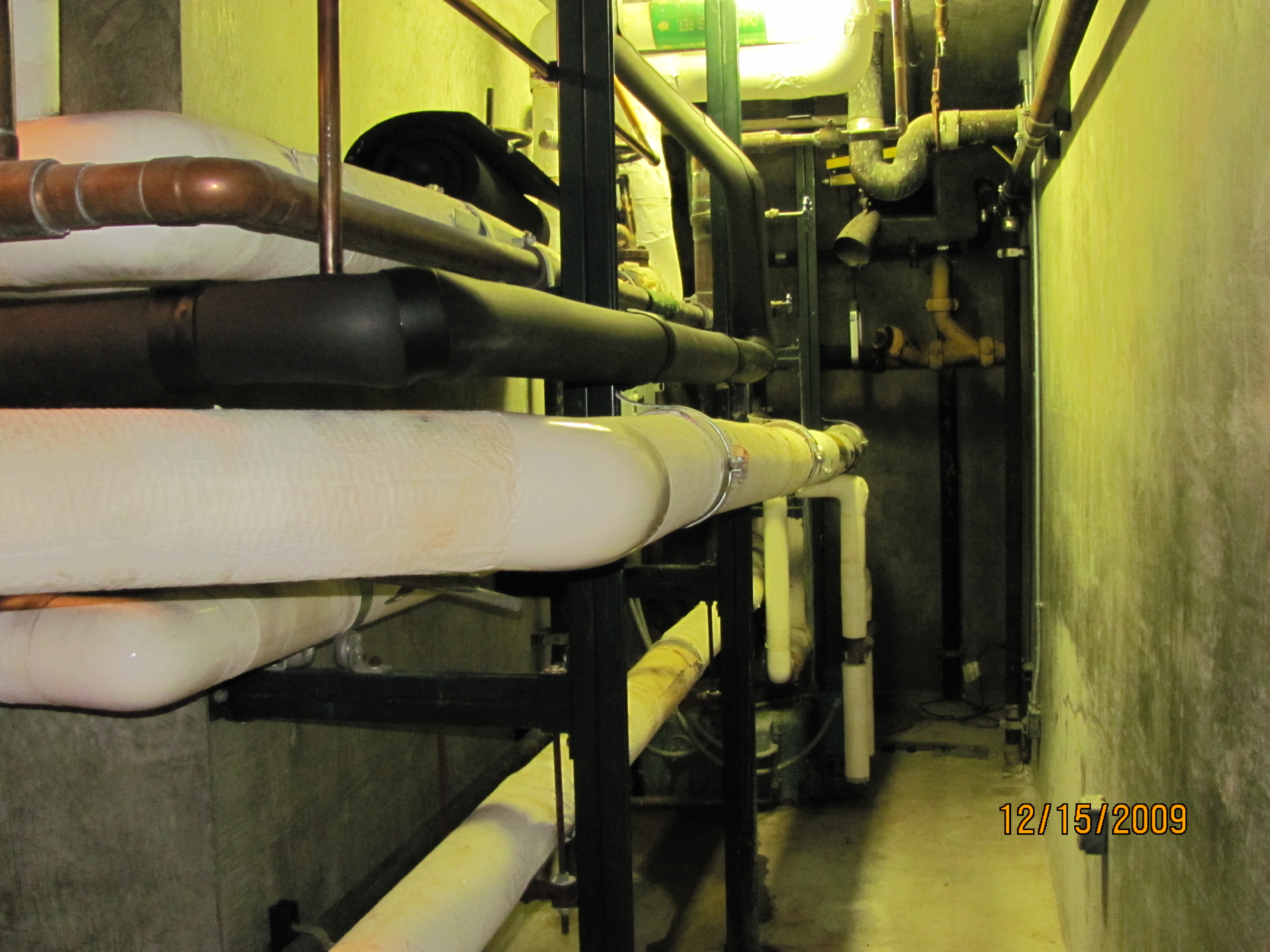

Existing steam and condensate piping in tunnel

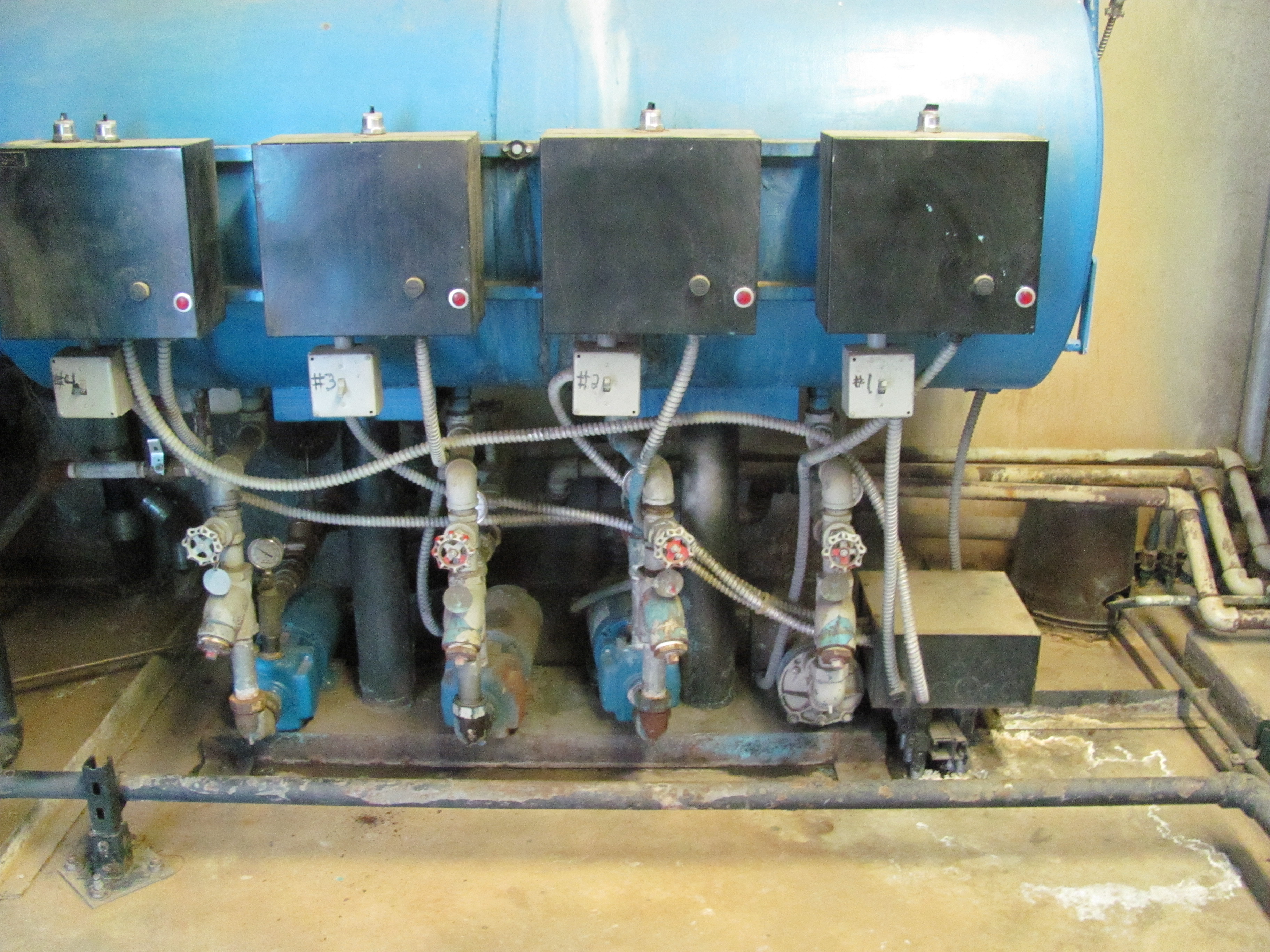

Existing boiler feedwater system

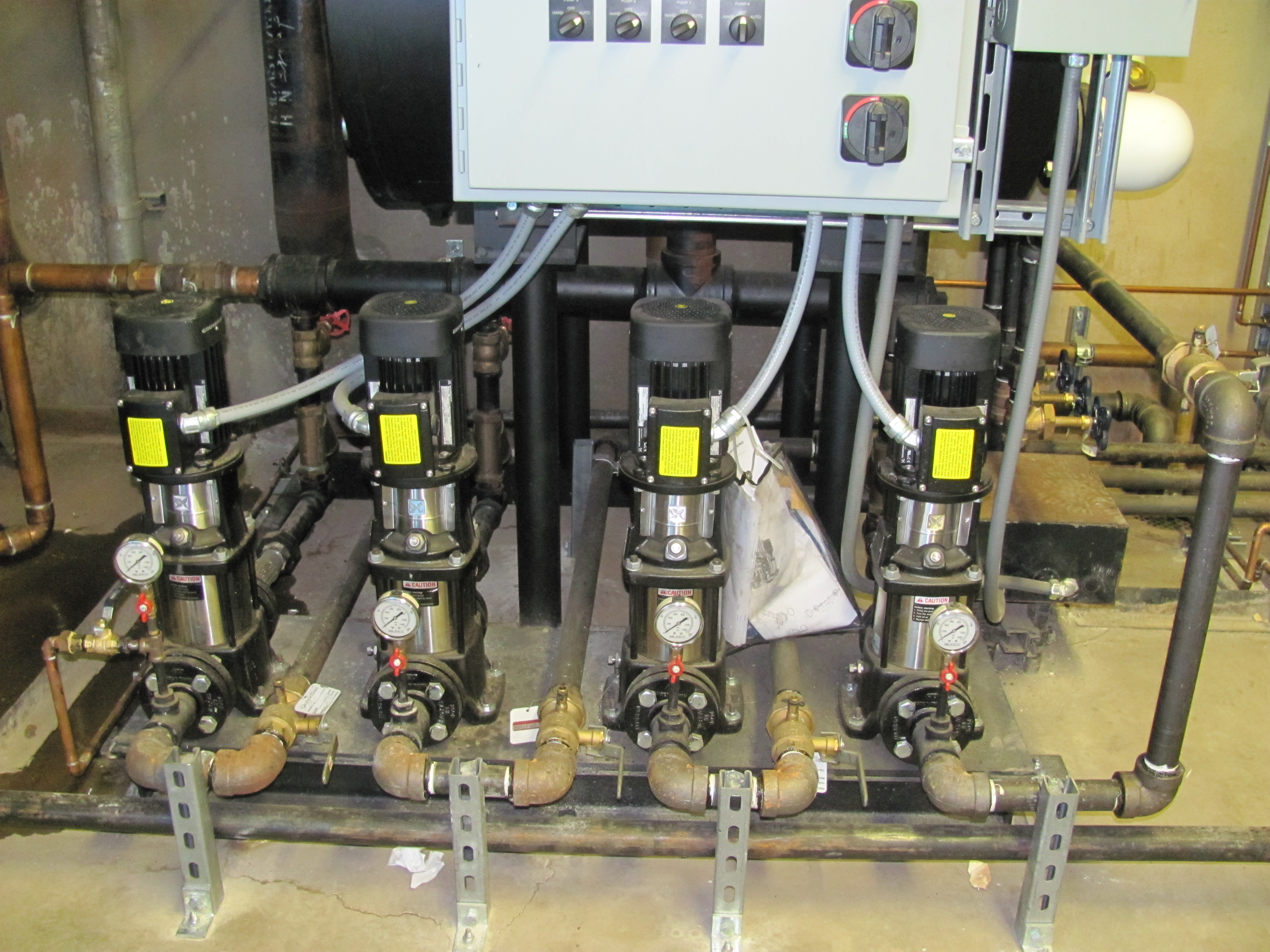

New boiler feedwater system
New condensate return unit

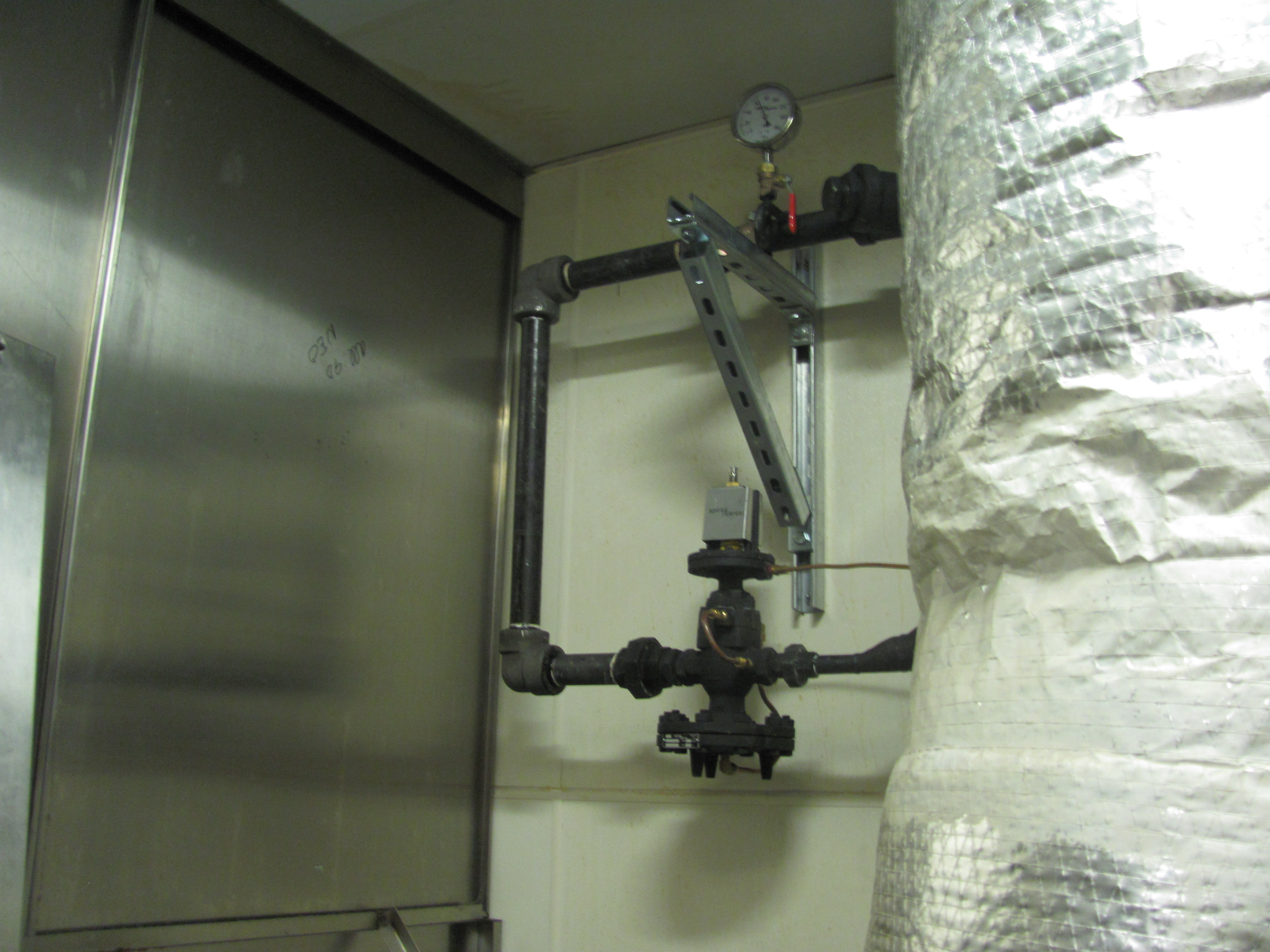

New PRV station at cartwash heat exchanger
