La Quinta, 2006, JN06010
Twenty-three two, three and four story buildings consisting of 4 to 72 apartments each. Community building and laundry/shop building.
Building types: 12.
Total apartment units: 220.
Split-system air conditioning systems with dx cooling and combined hydronic/domestic hot water heating. Individual gas storage-type hot water heaters.
Services performed: Mechanical and plumbing engineering and drawings for
competitive bidding. Title-24 energy compliance. LEED Certification.
Architect: Interactive Design Corporation, Palm Springs.
Electrical Engineer: MRC Engineering.
Structural Engineer: Grayner Engineering.
Click on any image below for a larger view.
|
|

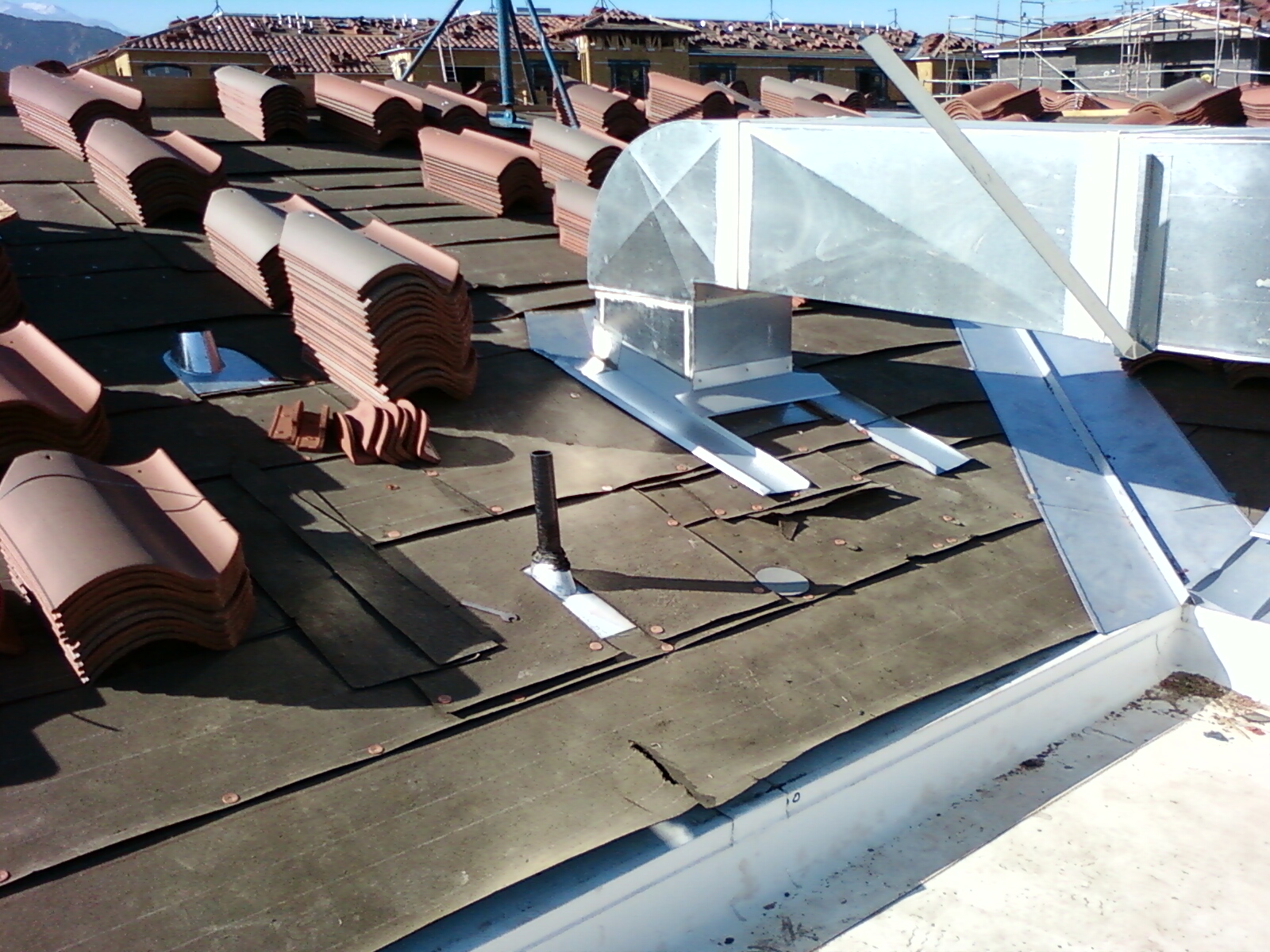

Construction phase -
Note rooftop penetrations flashing.
Counterflashing will follow. |

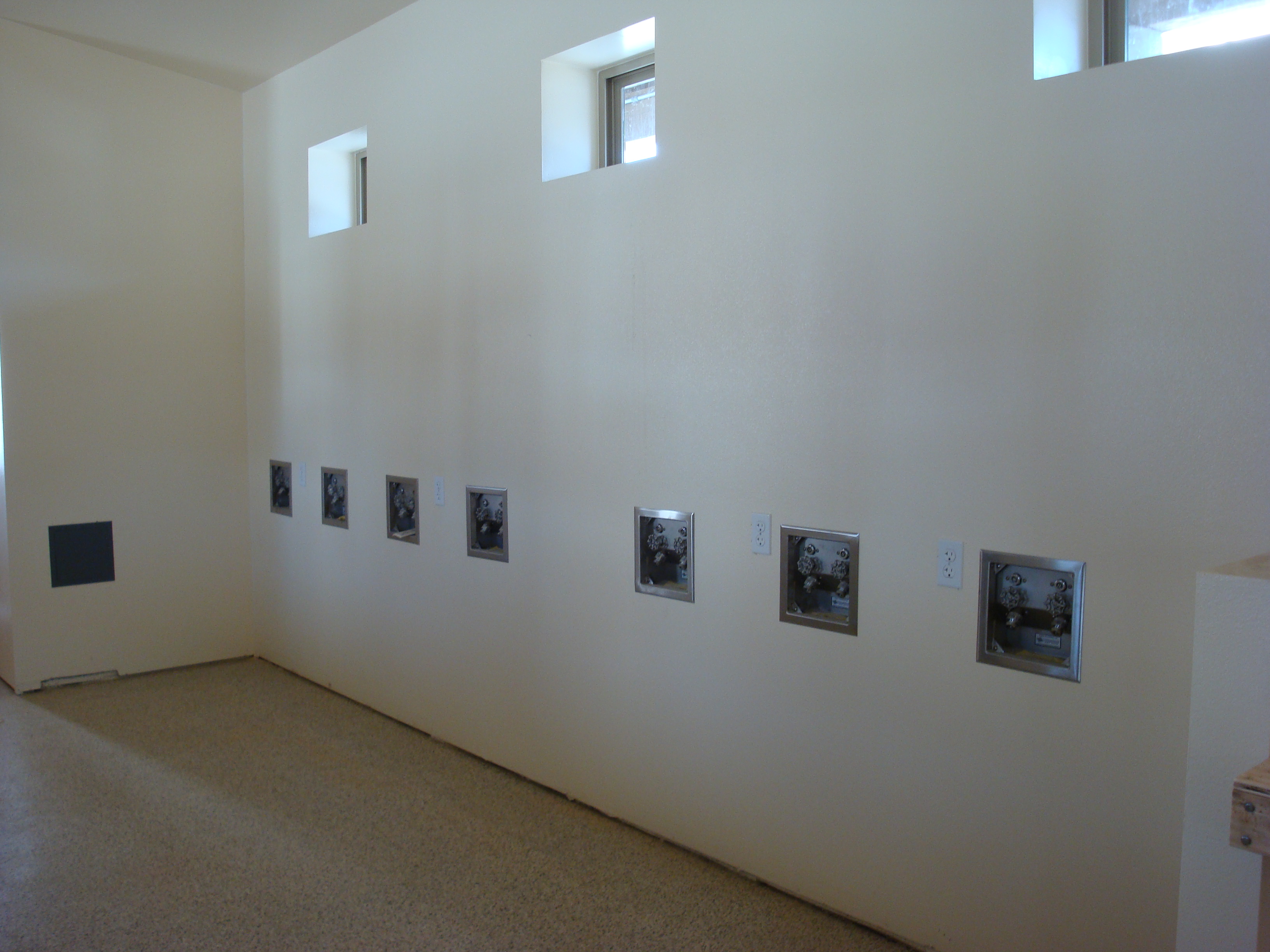

Construction phase -
Community laundry building |
|
|
Construction phase-
Community pool before plastering
|

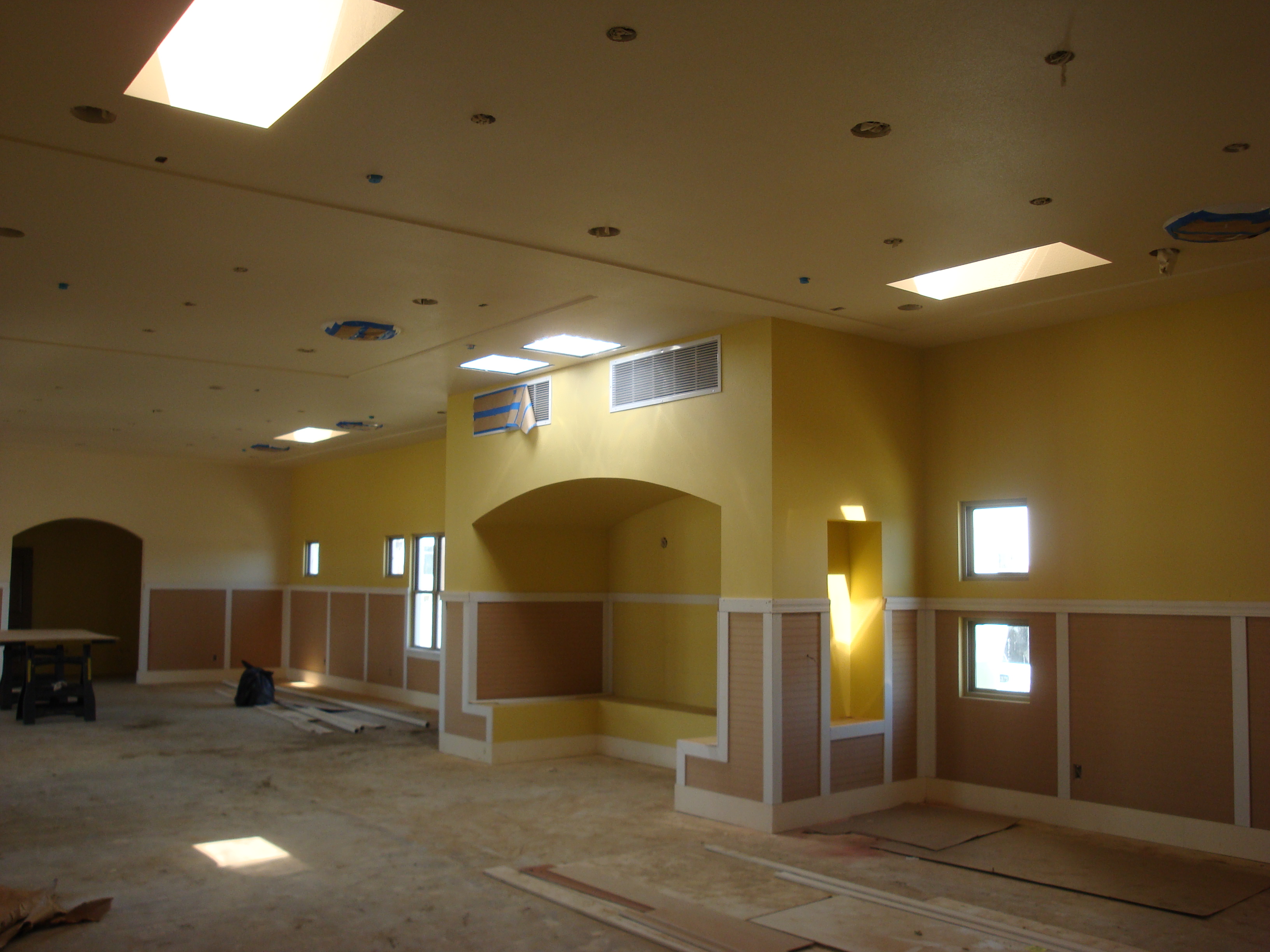

Construction phase-
Day Care Center |
|
|

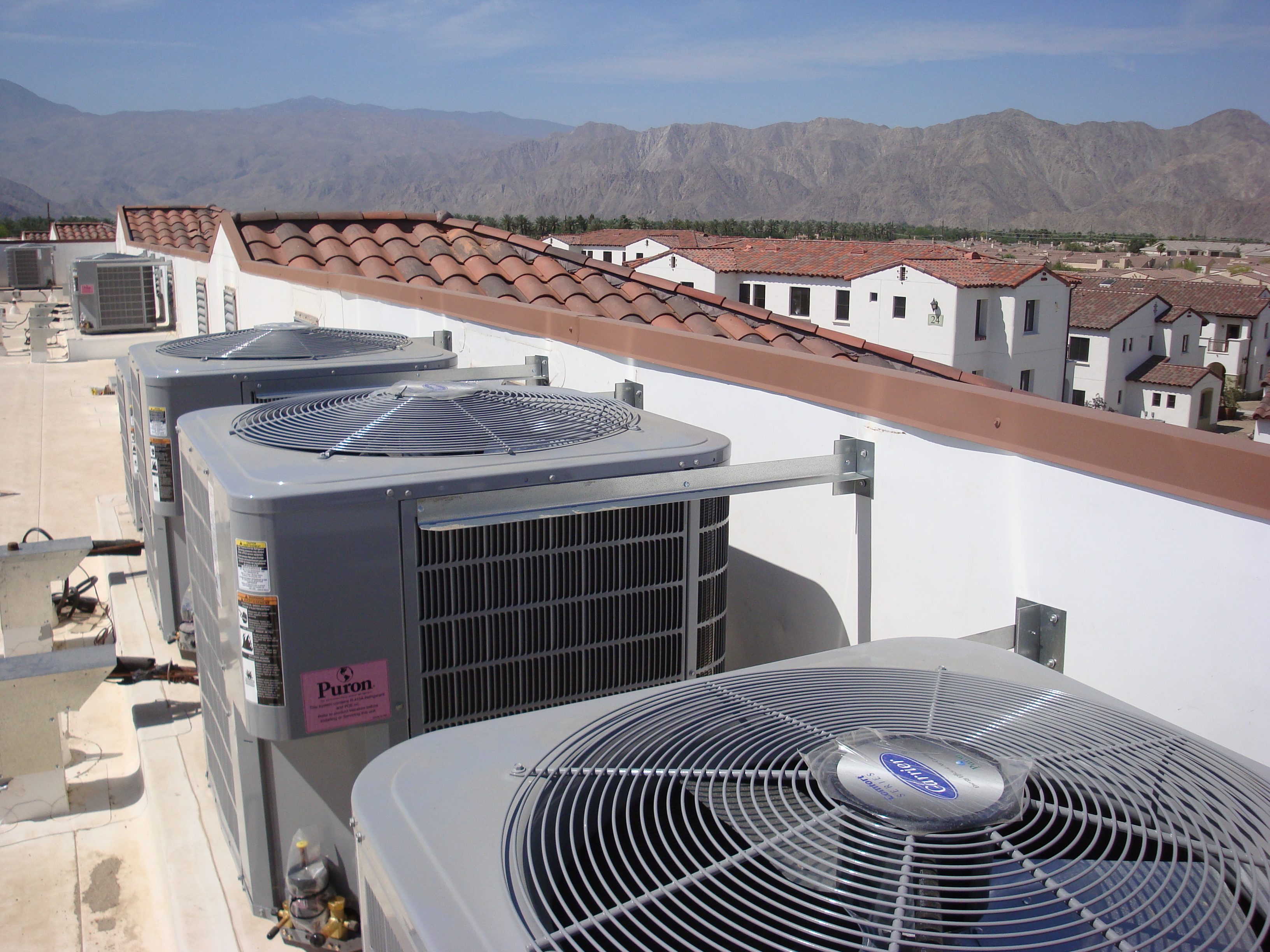

Construction phase-
Rooftop condensing units
|

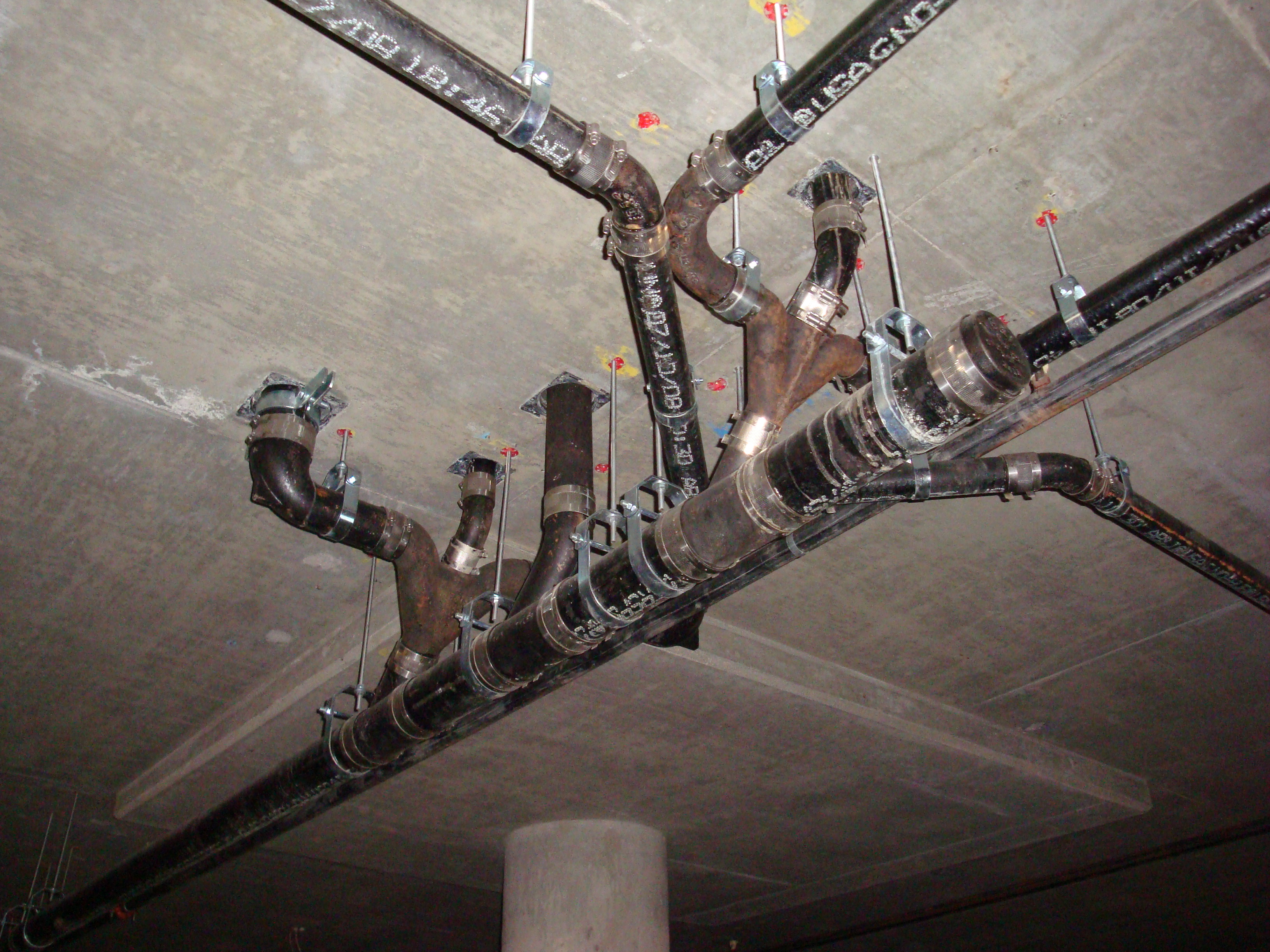

Construction phase - Drain, waste,
vent piping from apartments
above parking structure |
|
|

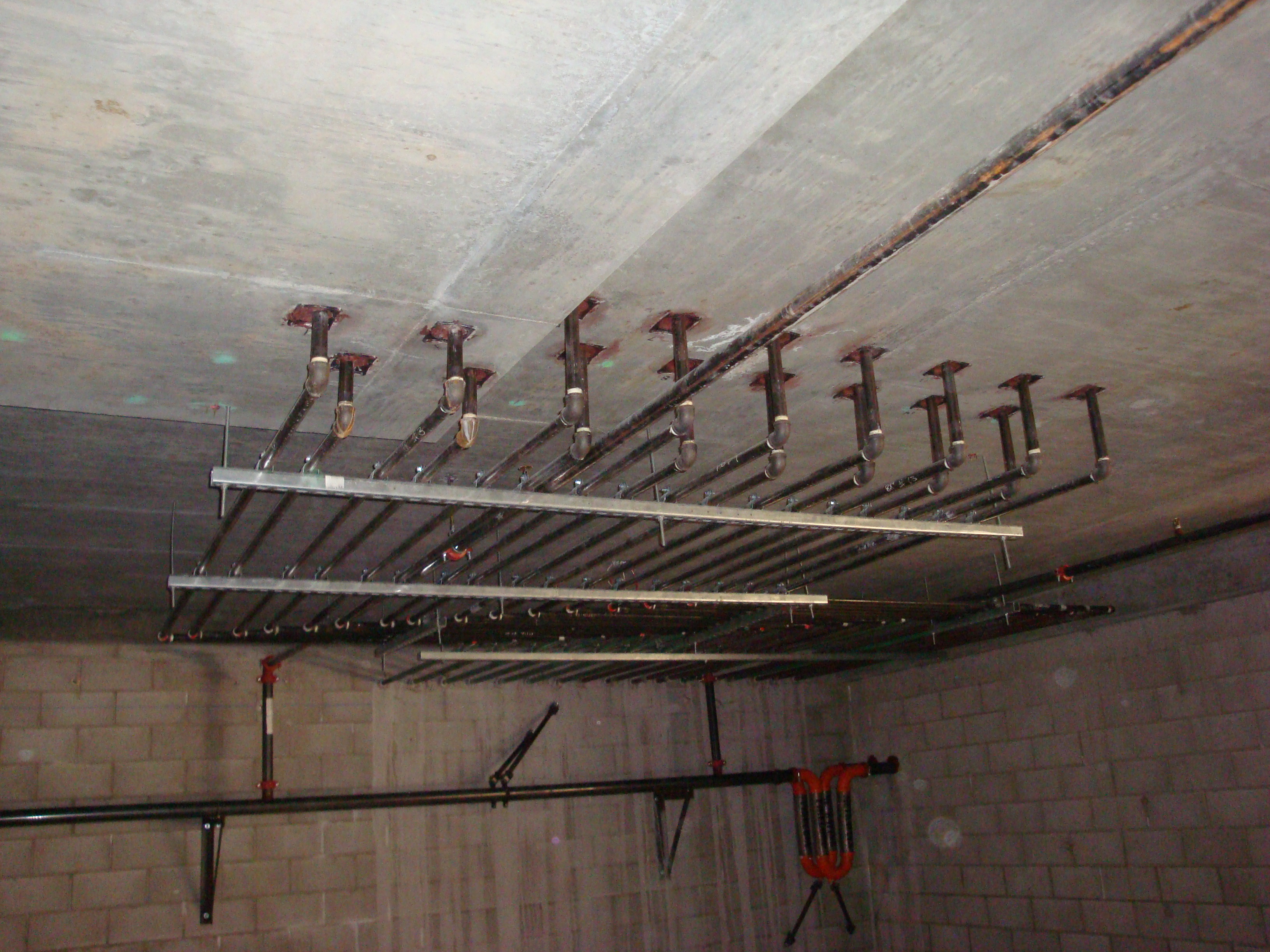

Construction phase - Gas piping
serving apartments above
parking structure
|

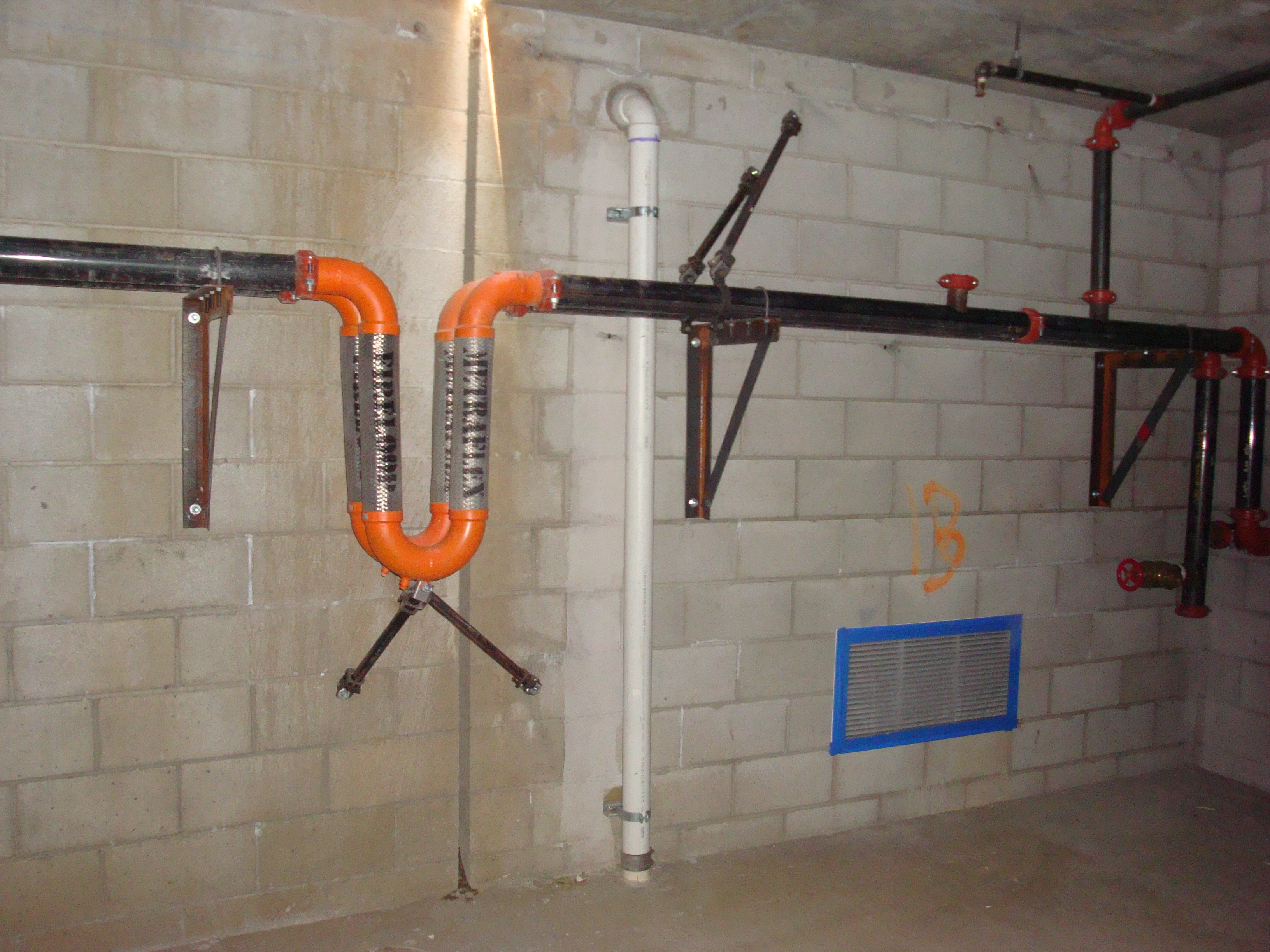

Construction phase - Drain, waste,
vent piping in parking structure
after painting |
|
|
Below grade parking structure
exhaust ductwork
|
Below grade parking structure
exhaust ductwork - Note typical
exhaust grill in wall and no duct
drops within parking structure. |
|
|

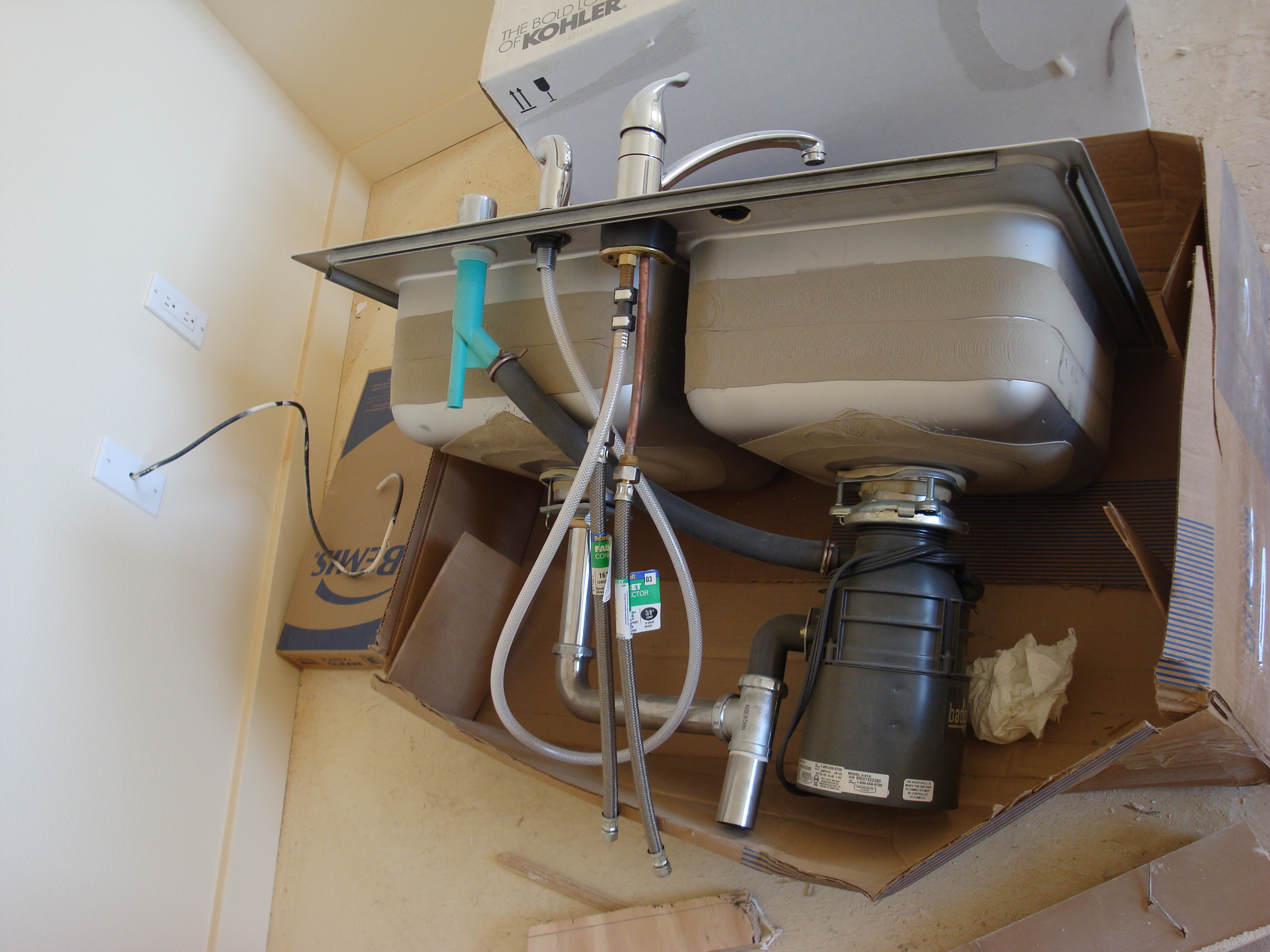

Construction Phase - Over 200
apartment kitchen sink assemblies
were pre-fabbed off-site for rapid installation in the countertops.
|

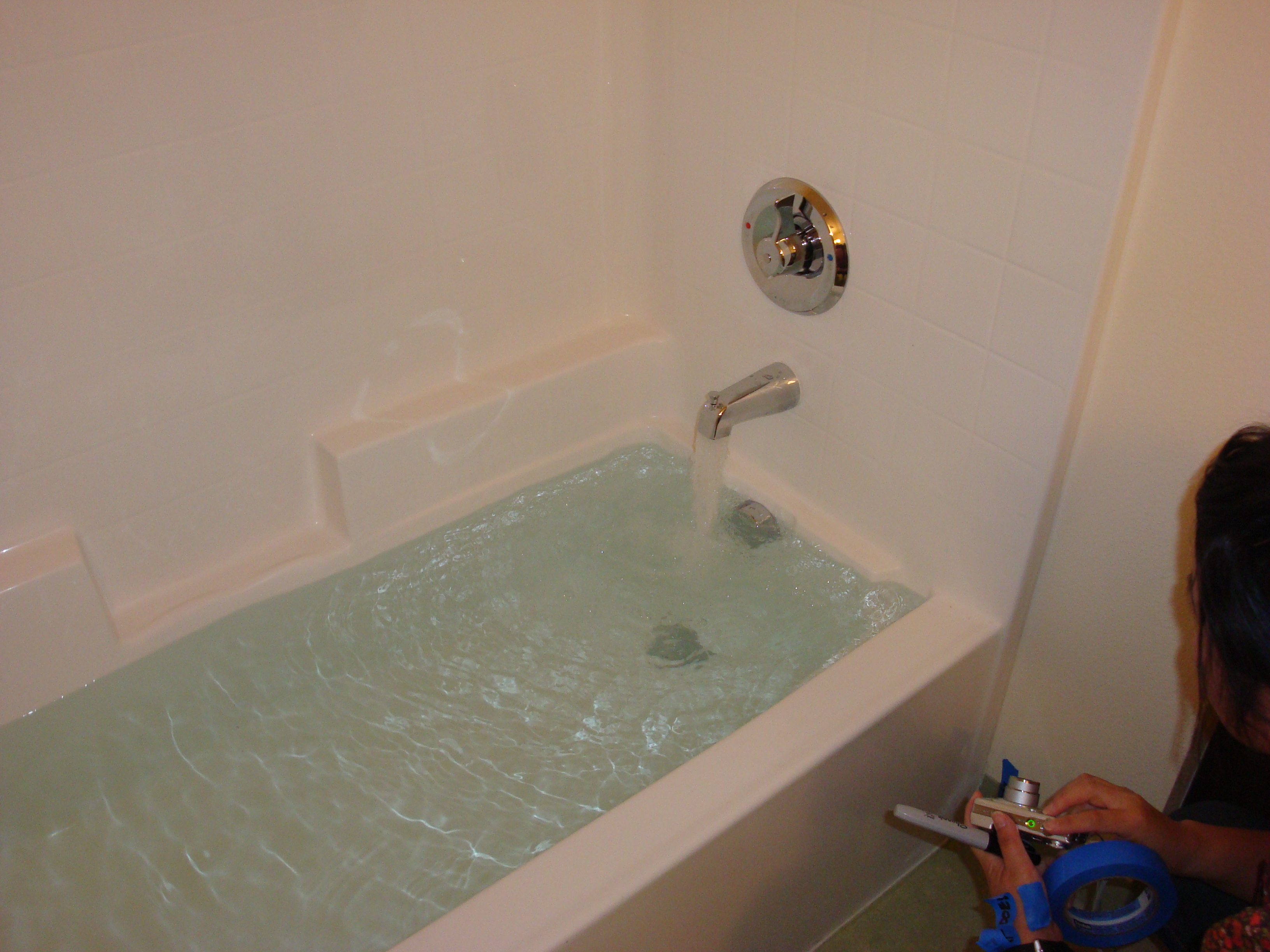

Quality Assurance Phase -
Punch list in apartment bathroom |
|
Quality Assurance Phase -
Punch list in apartment bathroom
|
|
