Santa Clarita, 1999, Job No.: JN98106

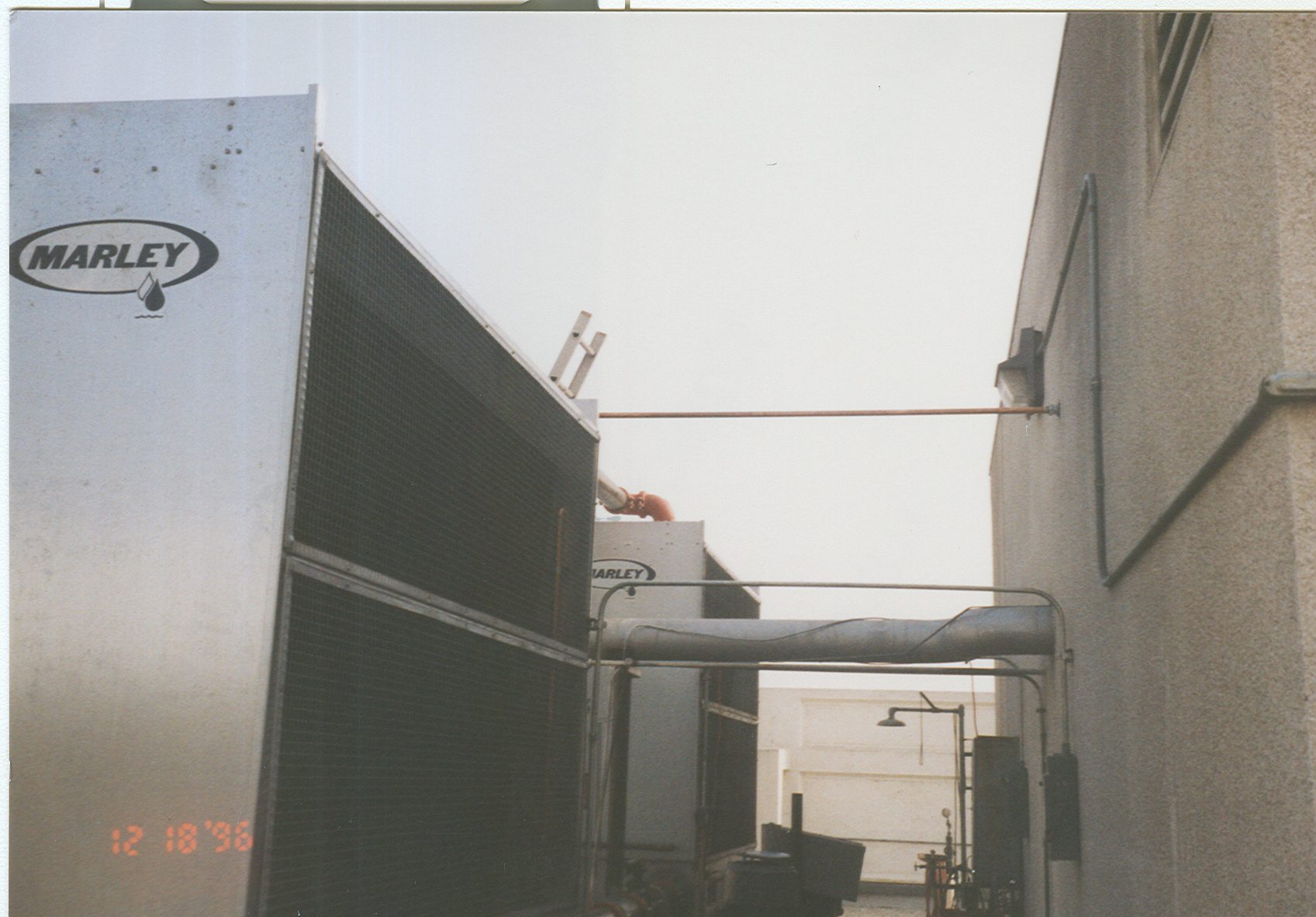

Replacement of two existing R-113 chillers with two 400 ton R-134a water-cooled centrifugal chillers in chiller room, replacement of induced-draft cooling tower, installation of plate-type heat exchanger, all at grade, at manufacturing facility.
Services performed: mechanical and structural engineering and drawings for design-build project delivery.
|
|
Original 19C chiller
control stand |
Original 19C chiller
compressor-motor |
|
|

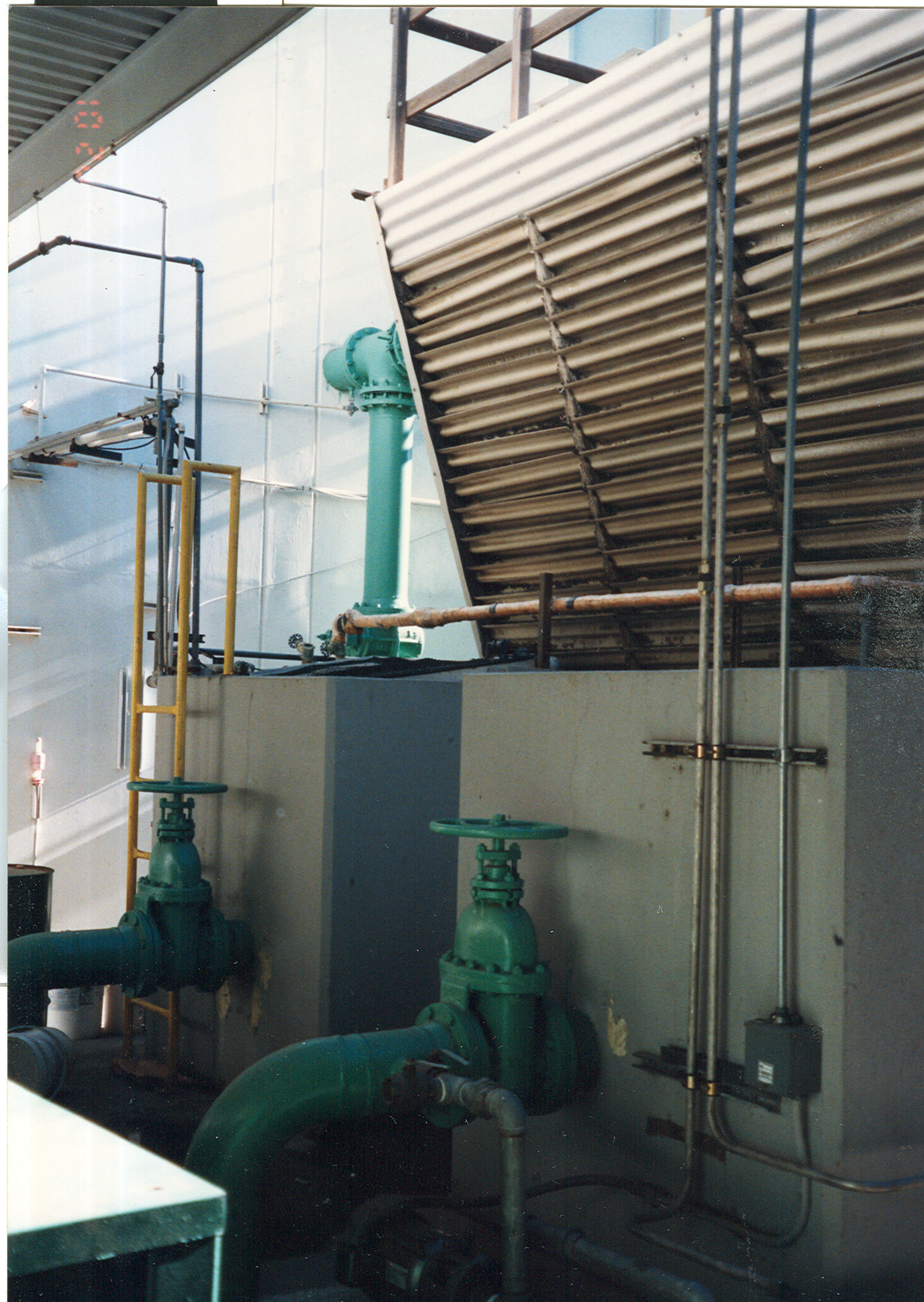

Original condenser water pumps
|

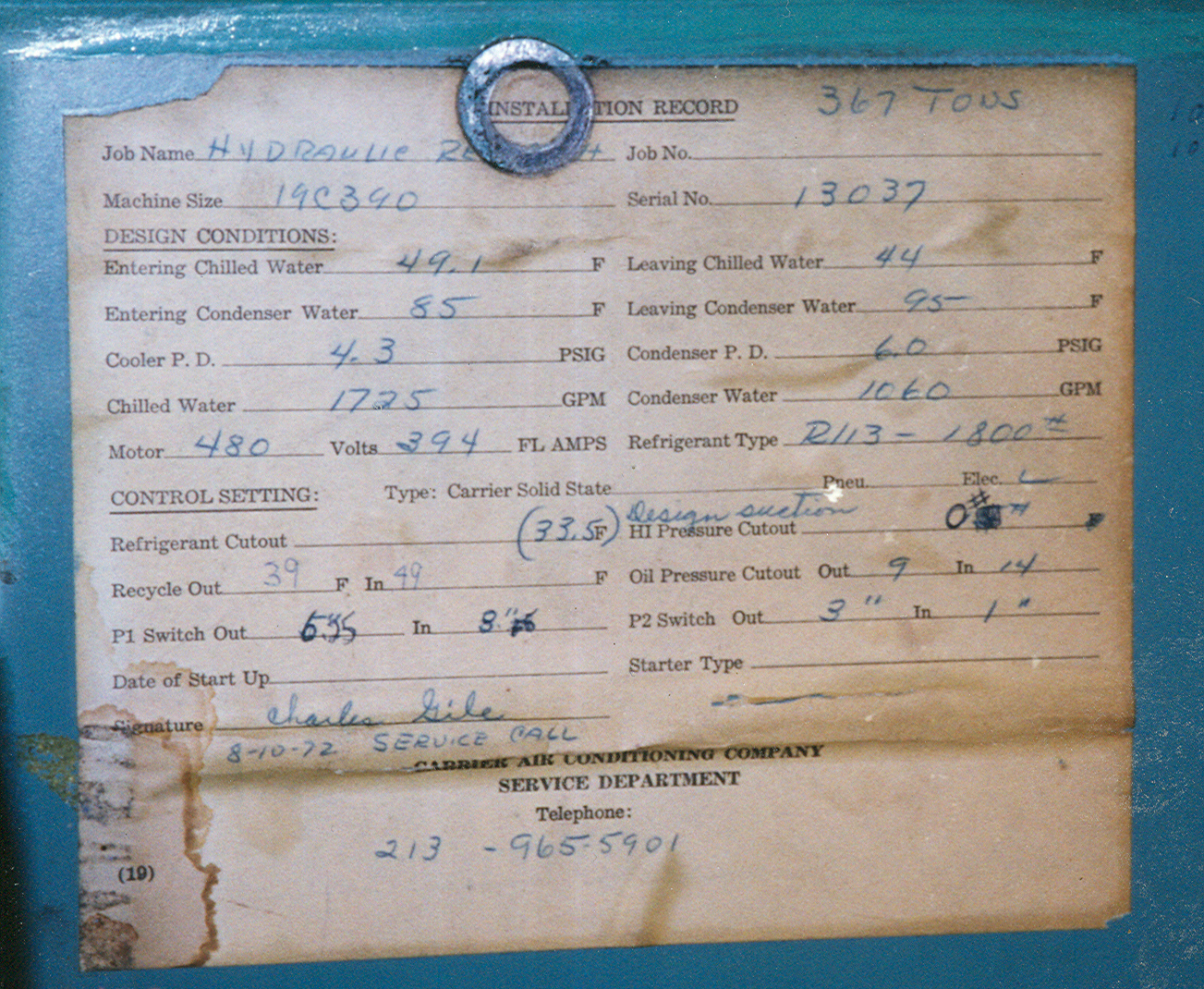

Original chiller start-up sheet
(first machine in
series
piping arrangement) |
|
|

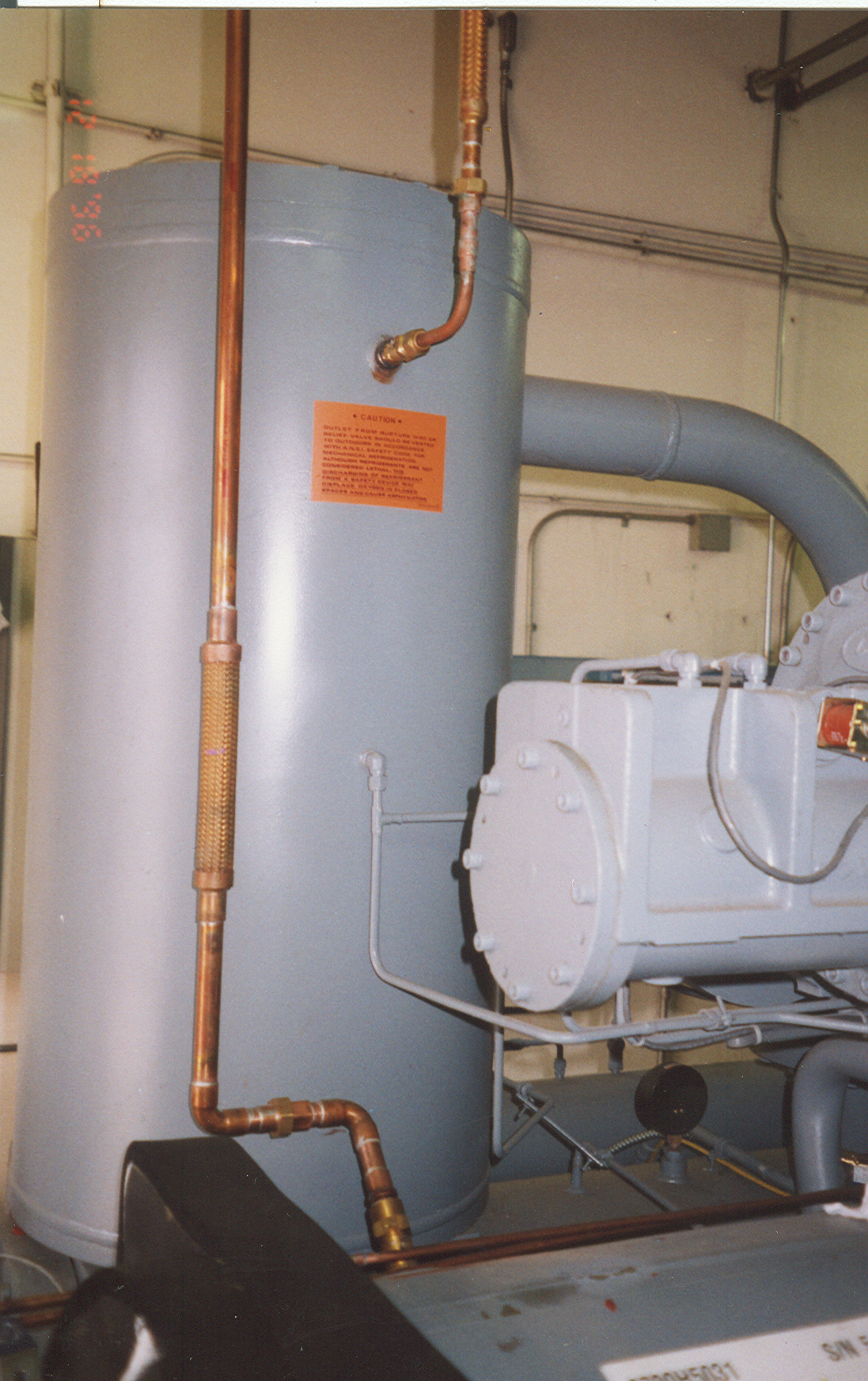

Original 19C chiller
|
Original 19C chiller
suction elbow |
|
