San Bernardino, February 1999, JN98023
Single story 25,000 sq. ft. learning center with classrooms, computer labs, offices. Packaged variable air volume rooftop air conditioning units serving VAV terminals and a rooftop space heating boiler supplying a hot water reheat loop.
Services performed: mechanical and plumbing engineering and drawings for design-build project delivery.
Click on any image below for a larger view.
|
|

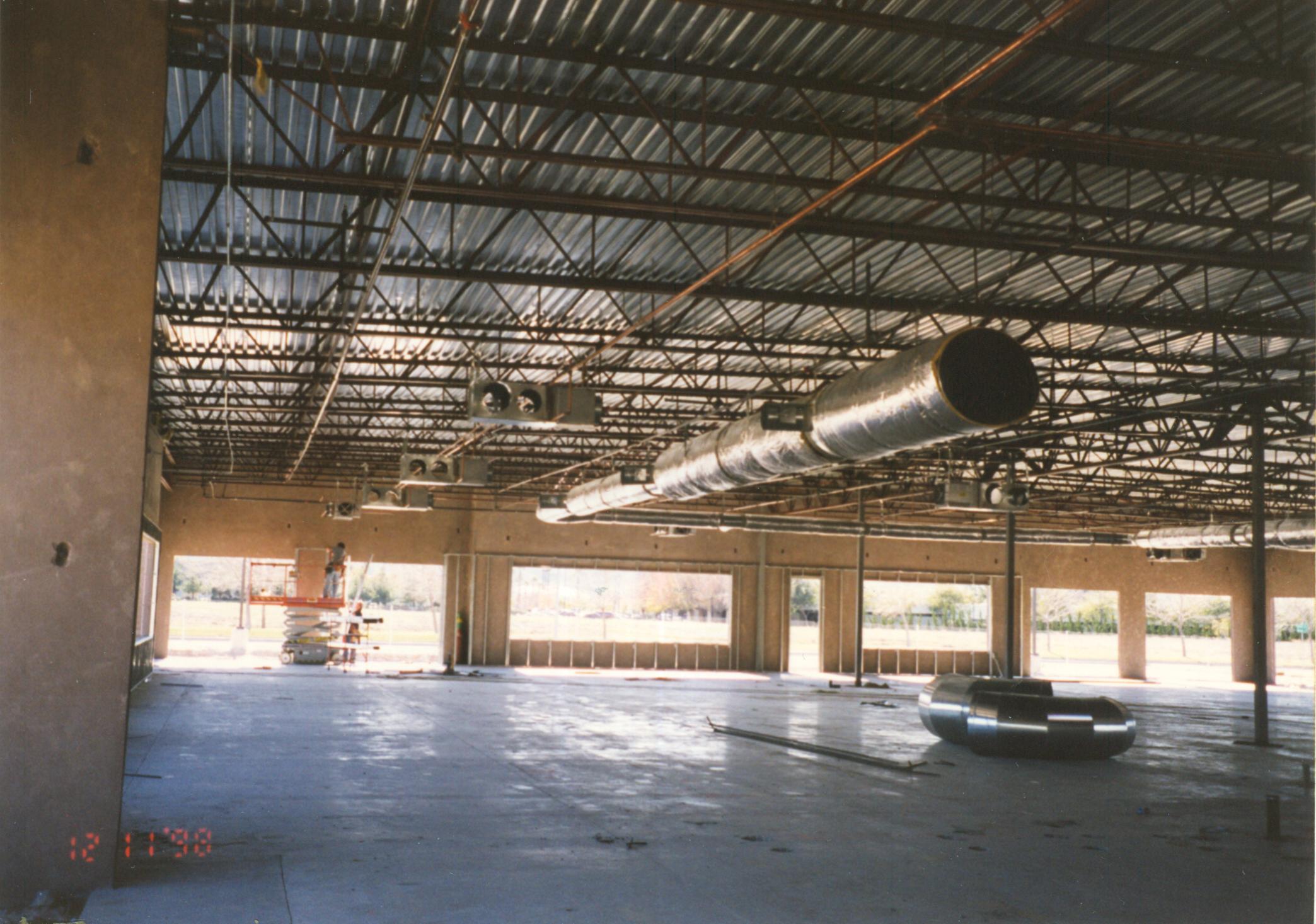

Construction phase - Variable air
volume (VAV) duct loop main
|

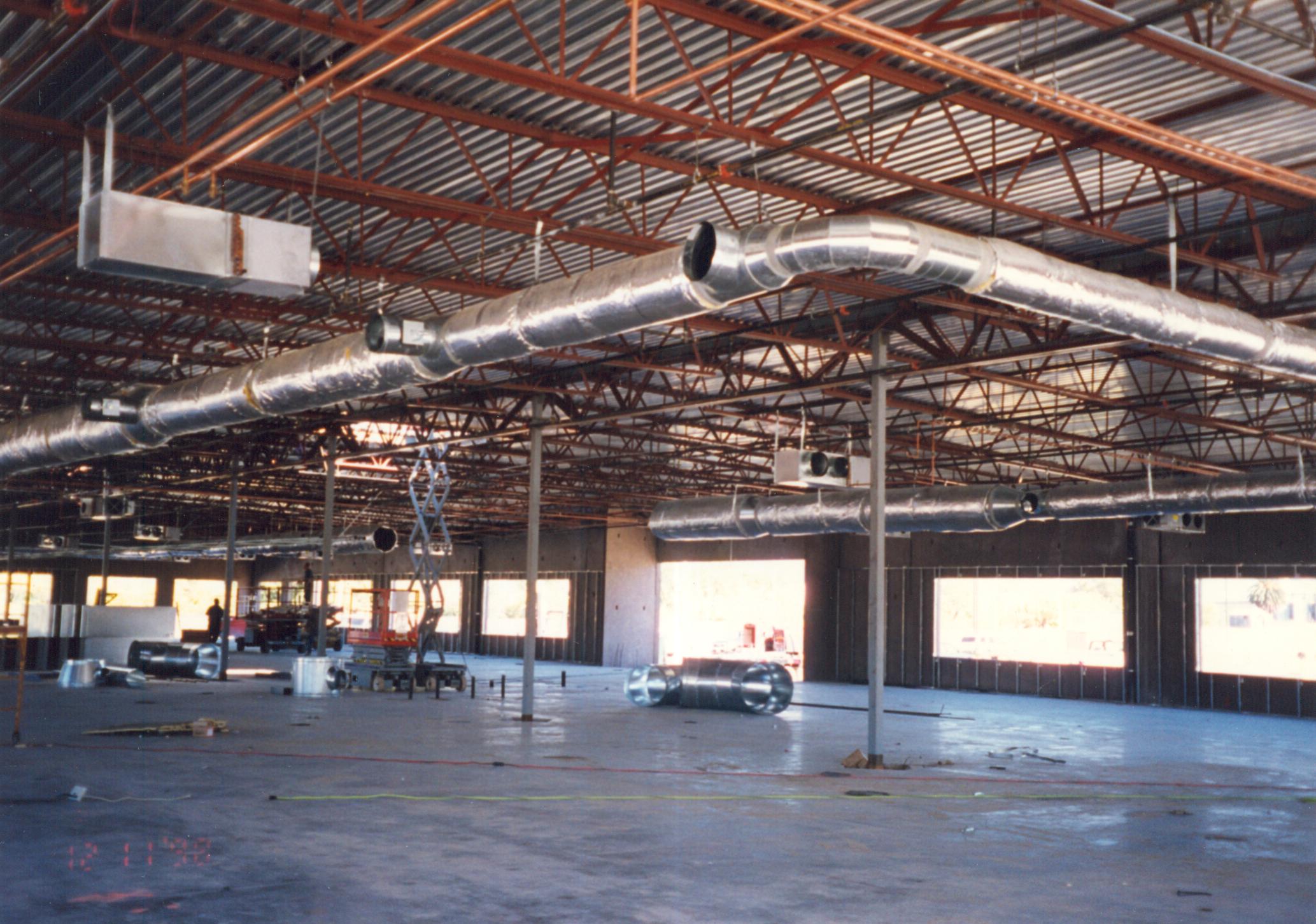

Construction phase - VAV
ductwork
|
|
|

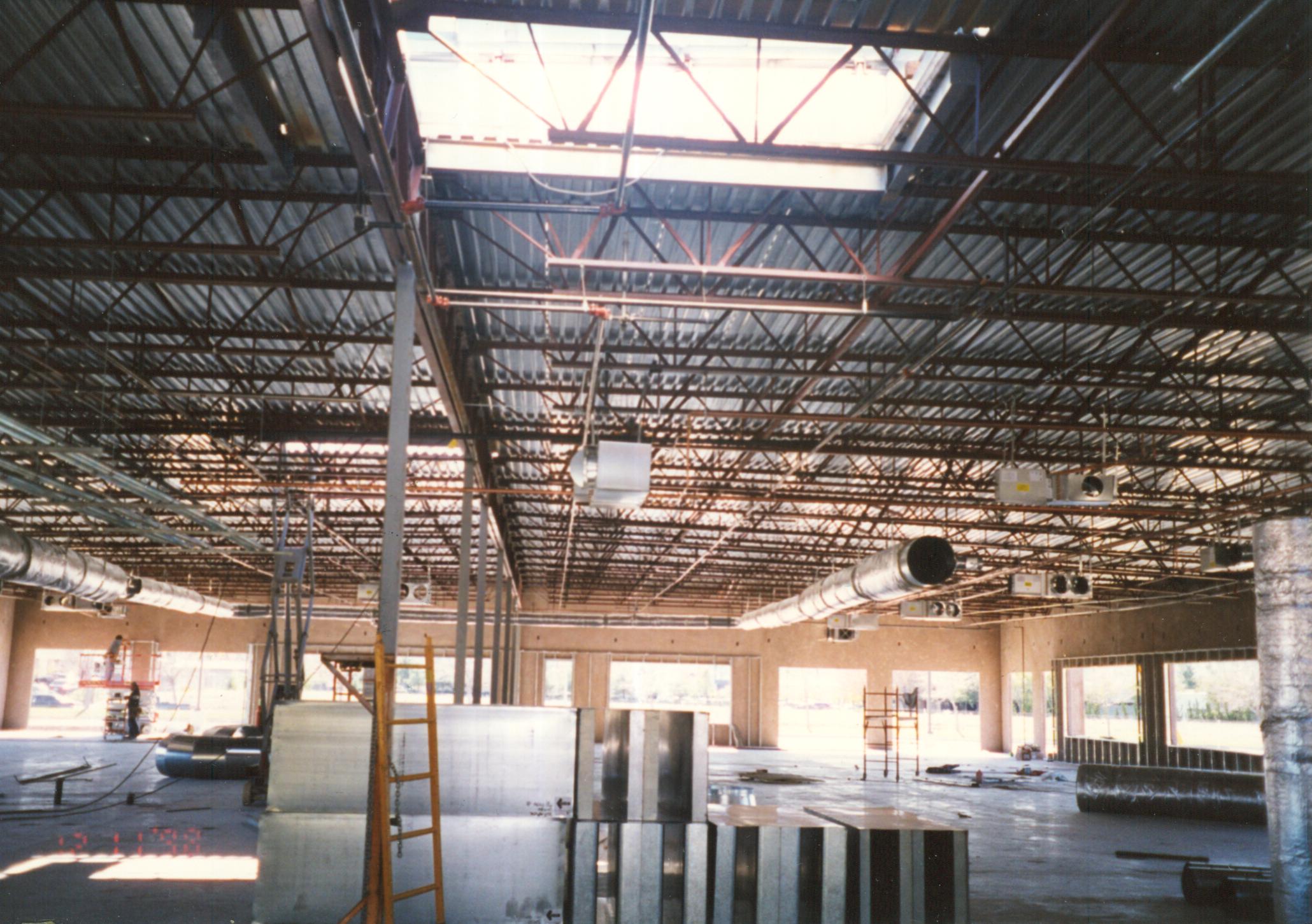

Construction phase - Note return
air sound traps on floor.
|

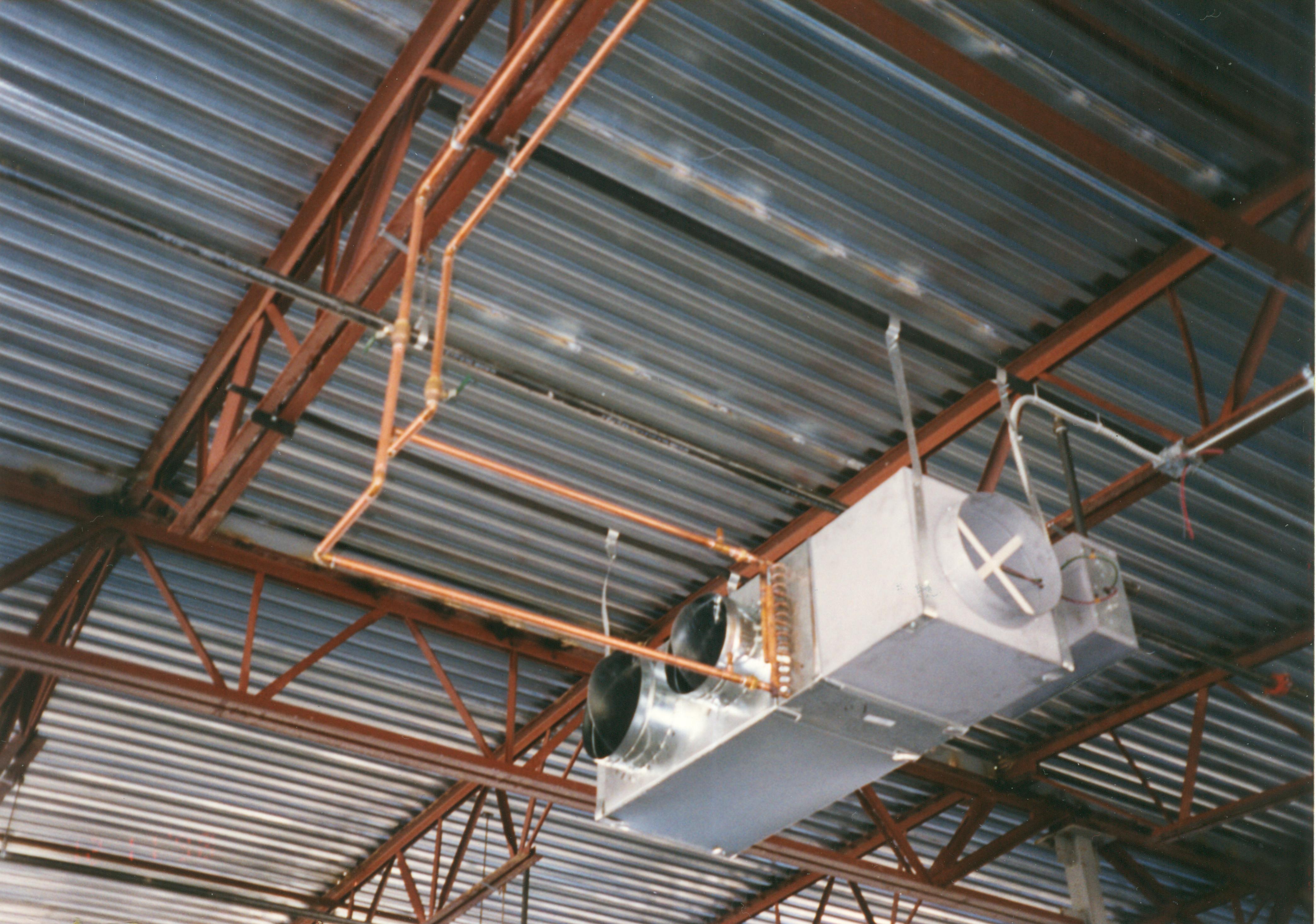

Construction phase - Typical
VAV box and reheat piping
|
|
